Vidaflex 111

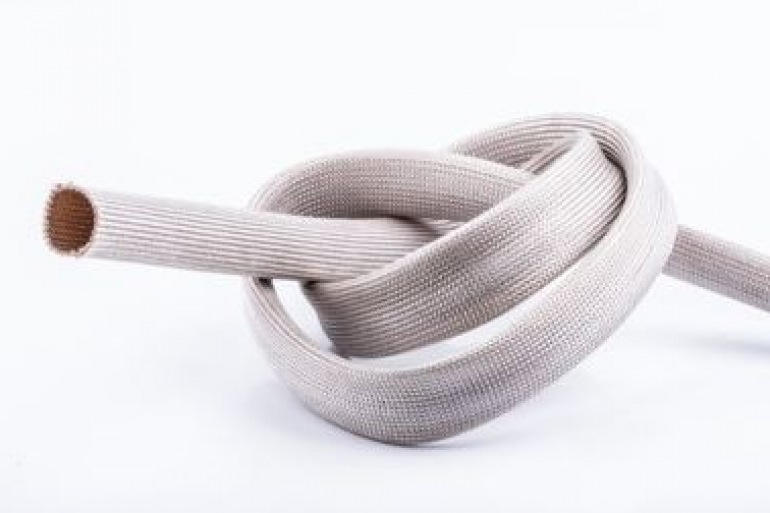

Vidaflex SIGB 111 is a silicone impregnated glass braid which offers protection and insulation for leads and wiring harness in all kind of appliances where high temperature can arise.

Vidaflex SIGB 111 is widely used in Class 220 rated traction motors and transformers for the insulation of winding lead outs and joints and as additional protection over cables.

Choose Diameter

2mm 3mm 4mm 5mm 6mm 8mm 10mm

Choose Colour

Choose Length

1m

Quantity:

Price:

£ 2.75 exc VAT
Temperature Class
C
Continuous Operating Temp °C
- 60°C to + 350°C. • Peak to + 400°C (a few hours)
Dielectric strength
1kV
Flammability
Non flammable
UV resistance
Yes
Non-watertight
Yes
Flexibility
Yes
Resistance to oils
Yes according to UTEC 93641
Mechanical resistance
Yes
